Home KMP series

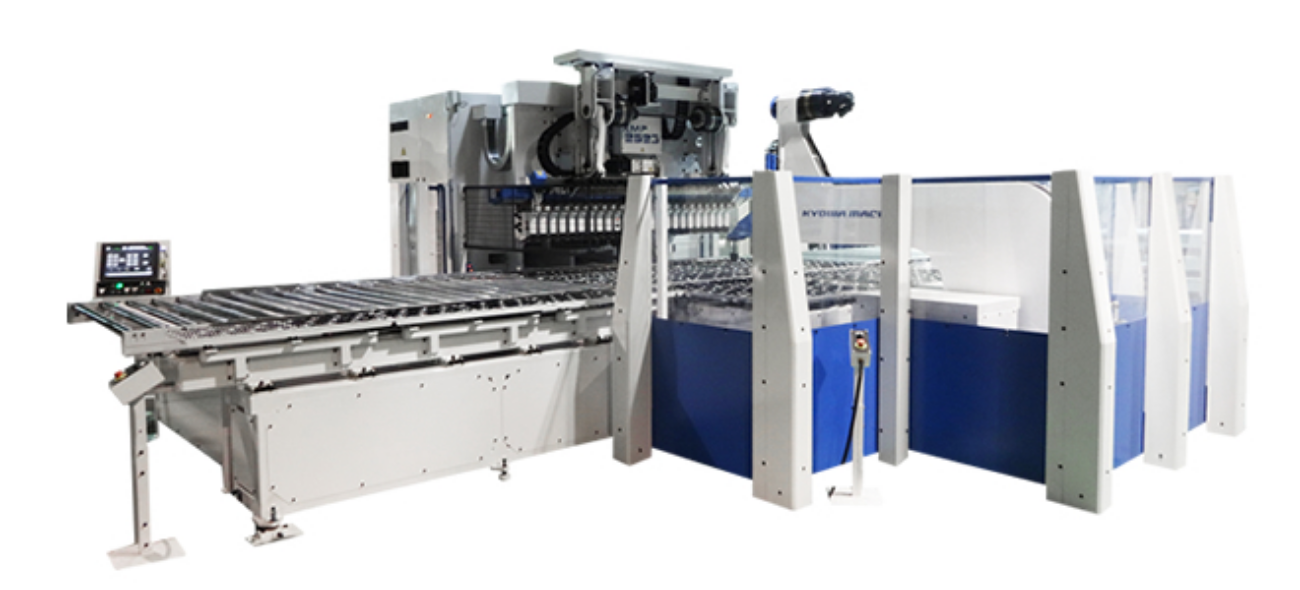

KMP LINE

KMP series

KMP LINE

Person saving,
well cost performance,
high productivity

At our company, we offer a variety of KMP line models, including configurations with single-sheet loading systems. We also provide integrated FA (Factory Automation) solutions through connections with automatic warehouses and blanking machines. Based on your production environment and needs, we propose flexible KMP lines that strongly support productivity improvements and stable operations.

Person saving, well cost performance, high productivity

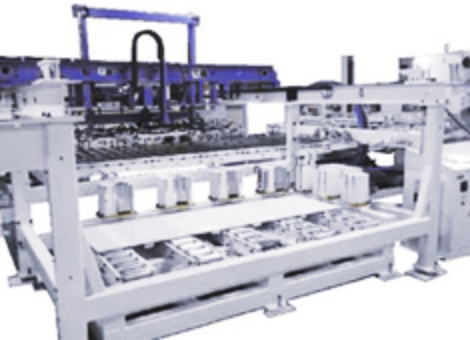

ST (setting table) + KMP+PT (unloading tilt table) type

By setting the next metal sheet on setting table during the first metal sheet being bended and storing two products on unloading tilt table, the productivity is increased.

Material origin set will be performed automatically if you put the material on setting table.

After that, KMP start to bend.

Another metal sheet can be set on the setting table during KMP bending the first one.

After finish bending, the product will be carried out onto unloading tilt table.

The line can contain 5 workpieces on it (regarding to the product size, it may become 4 workpieces).

Loading device + Inverting machine + ST (setting table) + KMP + PT (unloading tilt table)

If there are several pieces of material on loading machine, the only thing you need to do is taking out the products from unloading tilt table by using this full automatic line. It makes automatic person-saving to become reality.

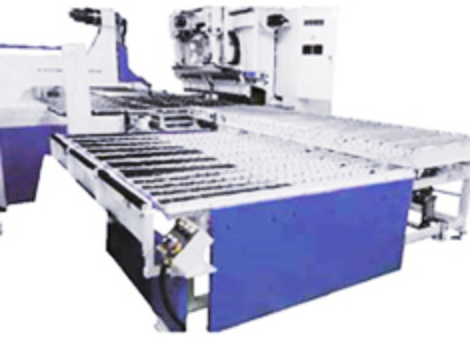

Loading device

Loading device is used to attract accumulated metal sheet and send it to the next step.

Specification: 1-station type and 2-station

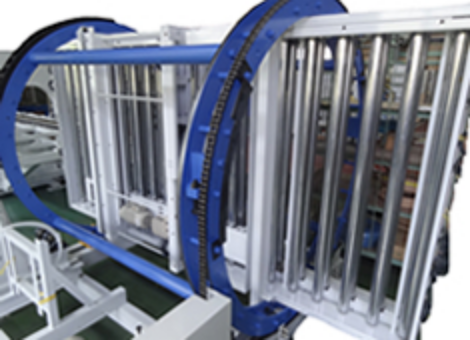

Inverting machine

Inverting machine is used to turn a metal sheet upside down when the metal sheet has burrs on its downside after turret punch or other previous process.

PT (unloading tilt table)

The device is used to transporting the bended products to a suitable place for taking out.

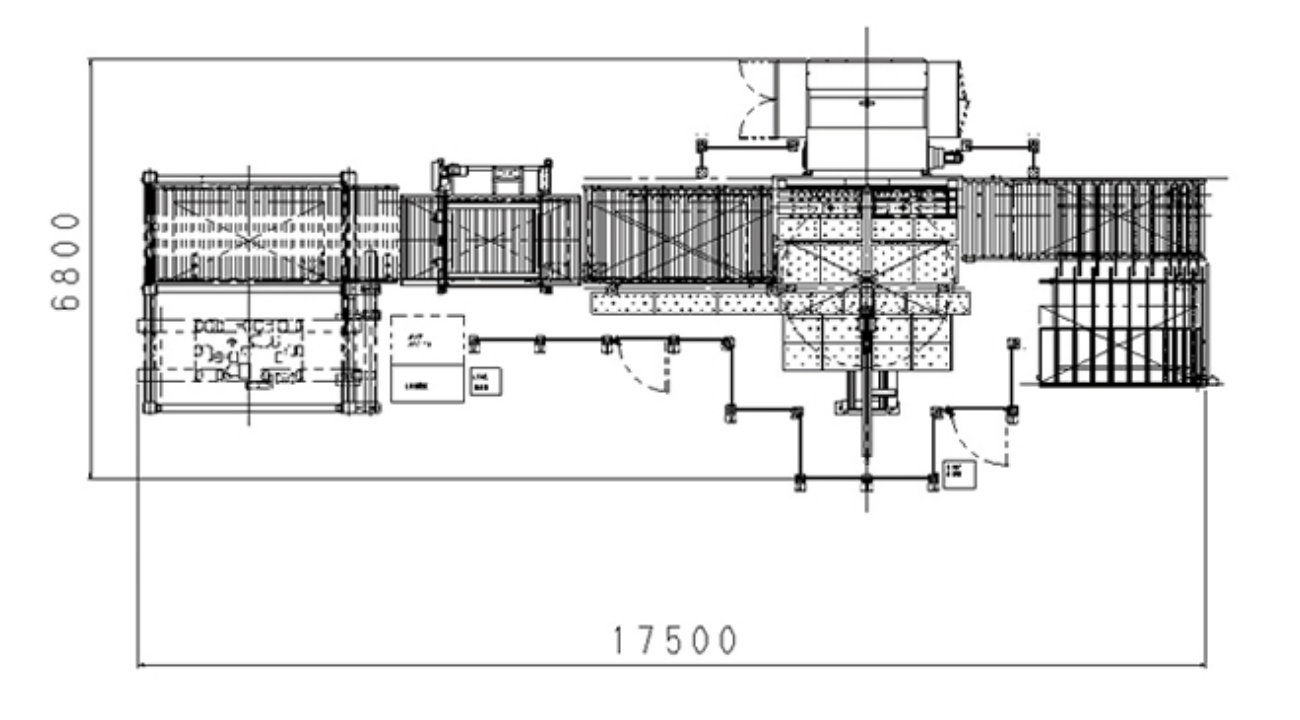

Layout
